MERCEDES EMULATOR

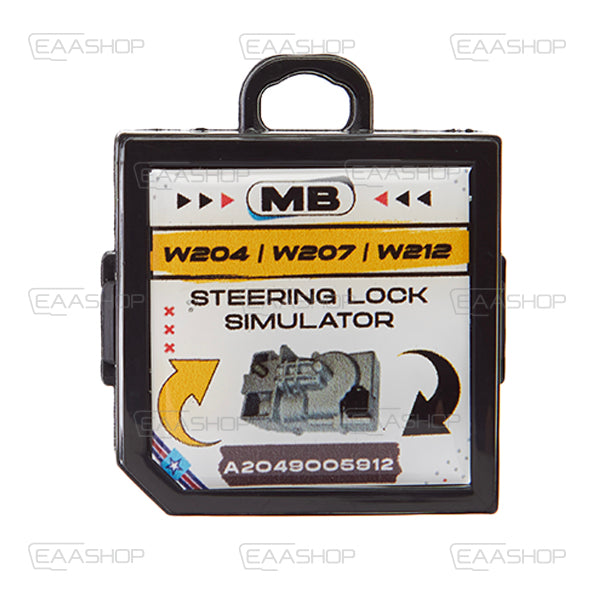

Steering lock emulator for Mercedes, bodies W204 / W207 / W212 / W176 / W246.
Needs programming. Emulator compatible with:
- Open AVDI
- Xhorse VVDI MB Tool
- Xhorse Keytool Plus
- CGDI MB
- DIAGSPEED
- AUTEL / AURO
Instructions:
- Disconnect the ESL/ELV cable from the car steering lock unit
- If the vehicle's steering lock is in lock mode, the steering lock must be removed from the car
- Calculate Mercedes EZS password using a Mercedes key programmer.
- Mercedes ESL/ELV emulator programming must be done using a Mercedes key programming device
- Connect the emulator to the car and start the car.
Mercedes Steering Lock Emulator Light Behavior:
- After programming it, connecting it to the car or test leads, insert the car key into the switch.
- If the light turns green, it means the programming was completed perfectly and the car is ready to start.
- If the light turns red, it means that the programming procedures were not performed correctly or the key you are using does not belong to the same EZS
- If the light does not turn on, you need to check the car's power supply or cables
